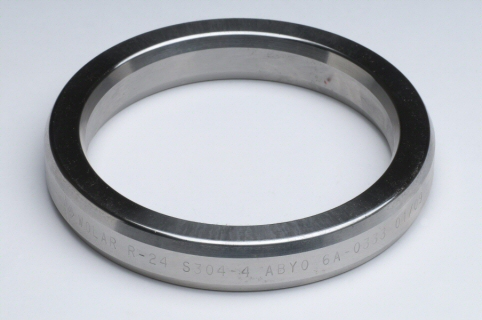

Description:

The R-Type ring gasket can be ordered to two different profiles, oval or octagonal in cross-sections. Both types have identical pitch diameter as the flange groove they correspond to. These gaskets are used in pressures up to 5,000 PSI. The octagonal type has a higher sealing coeffient than the oval, therefore being the better gasket of the two. The oval type is the only gasket that will fit a bottom radiused groove. Flanges with flat bottom v-grooves will accept either style. Gaskets that have been torqued initiating a metal-to-metal seal should be discarded and not reused.


Pressure Class Ratings

Wolar R-Gaskets For API 6B Flanges

150 3/600 900 1500 2500 2000 3000 5000 10000
R-11 1/2
R-12 1/2 1/2
R-13 3/4 1/2
R-14 3/4 3/4
R-15 1
R-16 1 1 1 3/4
R-17 1 1/4
R-18 1 1/4 1 1/4 1 1/4 1
R-19 1 1/2
R-20 1 1/2 1 1/2 1 1/2 1 1/2 1 1/2 1 1/2
150 3/600 900 1500 2500 2000 3000 5000 10000
R-21 1 1/4
R-22 2
R-23 2 1 1/2 2
R-24 2 2 2 2
R-25 2 1/2
R-26 2 1/2 2 2 1/2
R-27 2 1/2 2 1/2 2 1/2 2 1/2
R-28 2 1/2
R-29 3
R-30 3
150 3/600 900 1500 2500 2000 3000 5000 10000
R-31 3 3 3 3
R-32 3
R-33 3 1/2
R-34 3 1/2
R-35 3 3
R-36 4
R-37 4 4 4 4
R-38 4
R-39 4 4
R-40 5
150 3/600 900 1500 2500 2000 3000 5000 10000
R-41 5 5 5 5
R-42 5
R-43 6
R-44 5 5
R-45 6 6 6 6
R-46 6 6
R-47 6
R-48 8
R-49 8 8 8 8
R-50 8 8
150 3/600 900 1500 2500 2000 3000 5000 10000
R-51 8
R-52 10
R-53 10 10 10 10
R-54 10 10
R-55 10
R-56 12
R-57 12 12 12 12
R-58 12
R-59 14
R-60 12
150 3/600 900 1500 2500 2000 3000 5000 10000
R-61 14
R-62 14
R-63 14
R-64 16
R-65 16 16
R-66 16 16
R-67 16
R-68 18
R-69 18 18
R-70 18 18
150 3/600 900 1500 2500 2000 3000 5000 10000
R-71 18
R-72 20
R-73 20 20
R-74 20 20
R-75 20 18
R-76 24
R-77 24
R-78 24
R-79 24
R-80 22
150 3/600 900 1500 2500 2000 3000 5000 10000
R-81 22
R-82 1
R-83
R-84 1 1/2
R-85 2
R-86 2 1/2
R-87 3
R-88 4
R-89 3 1/2
R-90 5
150 3/600 900 1500 2500 2000 3000 5000 10000
R-91 10
R-92
R-93 26
R-94 28
R-95 30
R-96 32
R-97 34
R-98 36
R-99
R-100 26
150 3/600 900 1500 2500 2000 3000 5000 10000
R-101 28
R-102 30
R-103 32
R-104 34
R-105 36
